Climatic tests

Your equipment is tested for the temperatures and humidity it can endure. The functionality of your equipment is verified in the largest climatic chamber in the Czech Republic. Several smaller climatic chambers are also available.

  • Large-capacity climatic chambers for functional tests. Testing buses, trams, trucks, military technology, industrial machines, and equipment.
  • Type testing for box and cooling box vehicle bodies – “K” coefficient measurements.
  • Temperature maps of transportation spaces for the pharmaceutical industry according to GDP directive requirements (Good Manufacturing Practice).

Our equipment ranges from the smallest climatic chamber with a volume of 0.36 m3 to the biggest large-capacity climatic chamber in the Czech Republic with a volume of 630 m3.

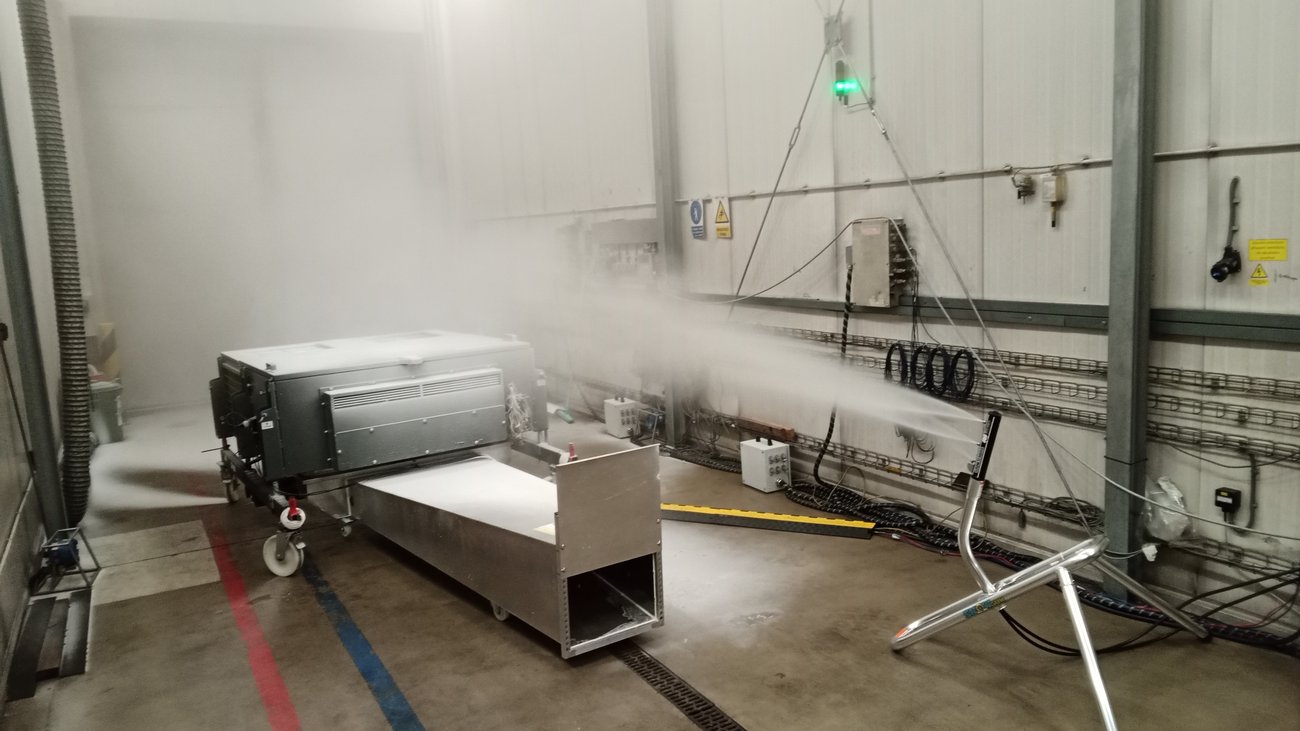

Large-capacity climatic chambers are used for testing functionality and performance under extreme temperatures.

They are also useful for testing the properties of refrigeration boxes and the performance of refrigeration units installed on vehicles.

The chambers can also be used for comparative tests of units installed on various vehicle types.

CCR1 - Climate Control Room 1 (low and high temperature with humidity control)

  • Room size: 21 m x 5 m x 6 m, entrance gates: 3,7 m x 4,4 m
  • temperature range: -32 °C to +60 °C, Humidity control
  • stability of the environment: Temperature ± 1 °C, Air flow 1 to 2 m/s, Humidity ± 5%
  • Authorized for ATP certification (Agreement on Transport of Perishable foodstuff)
  • K-value measurement
  • temperature mapping of cargo space for pharmaceutical industry in accordance with GDP-guideline (Good Manufacturing Practice)

CCR2 - Climate Control Room 2a and 2b (ambient temperature)

  • Room size: 18 m x 4,5 m x 6 m, entrance gates: 4 m x 4,4 m
  • temperature range: +15 °C to +50 °C
  • temperature stability: ± 1 °C
  • inspection and control ATP test

CAB1 - Climate Control Room 3 (high humidity and high temperature)

  • Room size: 8,2 m x 4,7 m x 2,9 m, entrance gates: 2,5 m x 2,5 m
  • temperature range: +15 °C to +60 °C
  • humidity range: 30 % to 99 %
  • stability of the environment: Temperature ± 0,5 °C, Humidity ± 3 %, Airflow 0,1-0,2 m/s

TTU1 - Calorimetric Test Lab 1 (low and high temperature without humidity control)

  • Chamber size: 3,1 m x 3,4 m x 3 m, entrance gates 2,5 m x 3 m
  • temperature range: -35 °C to +60 °C
  • temperature stability: ± 0,3 °C

TTU2 - Calorimetric Test Lab 2 (low and high temperature without humidity control)

  • Chamber size: 4,6 m x 3,4 m x 3 m, entrance gates 2,5 x 3 m
  • temperature range: -35 °C to +60 °C
  • temperature stability: ± 0,3 °C

CC1 – Climatic chamber 1 (low and high temperature with humidity control and fast temperature change)

  • Chamber size 1,5 m x 1,5 m x 1,1 m (volume 2.5 m3)
  • temperature range: -40 ° to +180 °C
  • temperature gradient: 10 °C /min
  • humidity range: 5 % to 95 %

CC2 – Climatic chamber 2 (low and high temperature with humidity control and fast temperature change)

  • Chamber size 0,58 m x 0,76 m x 0,75 m (volume 0,36 m3)
  • temperature range: -70 ° to +180 °C
  • temperature gradient: 3 °C /min
  • humidity range: 5 % to 95 %

The European Test Centre focuses on quality, environment, and safety, and is certified in accordance with the following standards:

EN ISO/IEC 17025 (General requirements for the competence of testing and calibration laboratories)

IATF 16949 (Quality Management System)
ISO 14001 (Environmental Management System)
ISO 45001 (Occupation Health and Safety Management System)
ISO 5001 (Energy Management System)

IRIS (The International Railway Industry Standard)
CTLA (Czech Testing Laboratories Association)
EUROLAB (European Federation of National Associations of Measurement, Testing and Analytical Laboratories)
ATP certification (The Agreement on the International Carriage of Perishable Foodstuffs)

ETC Prague is authorized by the Ministry of Transport of the Czech Republic to carry out the activities of the ATP and is included in the official UN list. For more detailed information about ATP tests, please visit the following web page: www.frcatp.cz/en/.

IATF_1IATF_2
ISO 14001_1
ISO 14001_2
ISO 45001_1
ISO 45001
IRIS1
Iris_2
acreditation_1
acreditation_2
acreditation_3
CTLA

Do you need assistance with testing?

Write to us and we will contact you soon with possible solutions.
